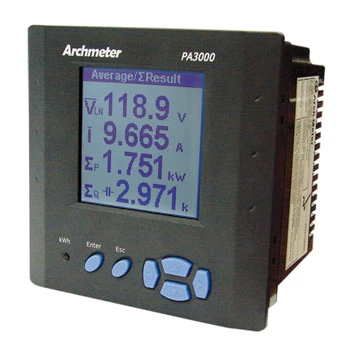

PA3000 – Smart Power Meter
Main Features
- Class 0.5 bi-directional energy and full power parameters measurement.
- Block or Rolling power demand measurement.
- THD, indivisual harmonics, and sag/swell power quality records.
- Data logging for alarm, sag, swell events with time-stamped.
- Report generation for daily and monthly power usage.
- Communication interfaces : Ethernet, RS485.
- Communication protocol : Modbus over TCP/IP for Ethernet, Modbus for RS485.
- Smart Power Meter with up to 4 channels of re-transmission analog outputs for field integration.
- 12 digital inputs for power system status monitoring.
- 2 digital relays for kWh pulse or alarm outputs.
- Automatic detection of voltage & current wiring.
- Multi-language support.
- 4 TARIFF OF TOU (TIME OF USE) SETTING
Description :
Ethernet-enabled revenue class multifunction meter for power measurement, power quality analysis, and power usage reporting
PA3000 series Smart Power Meter is designed for continuous monitoring of 3 phase system. All essential power parameters including current, voltage, power, active and reactive energy are integrated in a single meter. Its bi-directional energy measurement and harmonic analysis function makes PA3000 suitable for modern industrial power management. The built-in Ethernet and rich communication abilities enable Smart Power Meter to be easily connected with most modern third-party SCADA systems.
Related Products
PM3000 – Power Controller
Main Features
- Power Controller is widely used for power monitoring and control in factory and building.
- Manage up to 16 units of power meter
- Rich electricity parameters and power quality display for main and sub-feeder meter
- Power Controller is easy integrated with 3rd party supervisory control systems
- Remote power monitoring and control via intranet/internet
- Electricity demand control with 16 channel load shedding
- Multi-tariff management with TOU (Time-of-Use rate)
- Built in web server remote monitoring and control & data download
- Automatic report and alarm status sending by E-mail
- Front USB host port for data backup and program download
Description :
A Web-based Mini-SCADA for Power Monitoring, Demand Control and Report Generation
Power Controller is designed for modern industrial sites, commercial facilities and utilities power management. By integration of power monitoring, demand control, power quality analysis, report generation and communication, Power Controller fulfills all daily power management requirements. Power Controller combines the state of art embedded system with information networking technologies, a high performance power supervisory control system can be built at a fairly low cost.
Power Controller is designed for modern industrial sites, commercial facilities and utilities power management. By integration of power monitoring, demand control, power quality analysis, report generation and communication, Power Controller fulfills all daily power management requirements. Power Controller combines the state of art embedded system with information networking technologies, a high performance power supervisory control system can be built at a fairly low cost.
PA330 – Multi Function Power Meter
Main Features
- Power Quality measurement in V/I THD, V/I unbalance, V Eligibility and Min. & Max. Parameters
- With RS485 and Lonworks (option) communication protocol
Description :
Multi-Function Power Meter is designer for single and three phase power monitoring and measurement. Multi-Function Power Meter provides wide rang of measurements including current, voltage, energy, watt, power factor, watt-hour and frequency, etc. Multi-Function Power Meter also build-in RS485 can easily integrated with most third SCADA system.
DIN 96*96 standard compact size enable PA330 to be easily installed and its low cost and wide flexibility application also made PA330 a good choice for modern power monitoring.
PA310 – Clip-on CT Power Meter
Main Features
- Clip-on CT Power Meter with easily wiring especially for on-line installation
- Wide measurement range10(60)A, max to 1000A suitable for low voltage system
- Wh accuracy better than 0.5%(pf=1)
- Up to 10000 load profile records with configurable recording period
- RS485 communication support Modbus protocol
Description :
Clip-on CT Power Meter is designed for electric power monitoring and load recording for single or three phase systems. It can be directly used in low voltage systems due to its wide range measurement (up to 60A). PA310 can also maintain better than 1% accuracy even under low current condition (< 5A), thus it still can be used in middle to high voltage system. The unique features of PA310 including：clip-on CT, bi-directional measurement, long time load recording, and standard communication.
PA33/PA34 – Compact Smart Power Meter
Main Features
- True RMS energy and power parameters measurement in compact size
- Clip-on CT, easy wiring for on-line installation
- RS485 communication support Modbus protocol
- Wh accuracy better than 0.5%(pf=1)
- Compact Smart Power Meter supports Lonworks (option).
- Wild range of measurement with various size of CT , up to 200A(24Φmm)
Description :
PA33/PA34 are designed for general single phase or poly phase power measurement.
With wide range, Compact Smart Power Meter can be applied either on low voltage primary side or medium/high voltage secondary side for its high accuracy (<1%, IEC62053-21) under 5A current. Its compact size, easy installation, and low cost make PA33 suitable for modern electricity monitoring and load investigation.
With wide range, Compact Smart Power Meter can be applied either on low voltage primary side or medium/high voltage secondary side for its high accuracy (<1%, IEC62053-21) under 5A current. Its compact size, easy installation, and low cost make PA33 suitable for modern electricity monitoring and load investigation.
